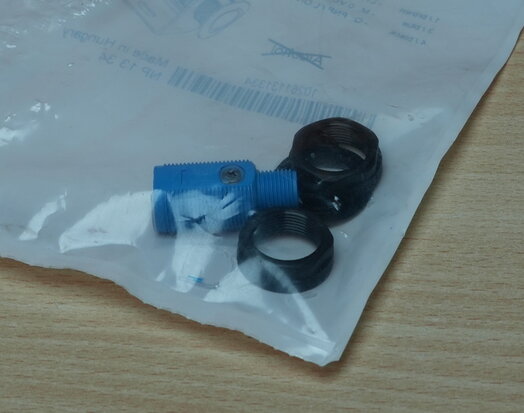

Sick MHT15-P3347 Photoelectric sensors

Sick MHT15-P3347 Photoelectric sensors 1026113

Ambient operating temperature: -25 ... 55 °C
Wave: ? 5 Vpp
Optical material: PMMA
Max detection range: 10mm... 350 mm
Thread diameter (housing): M18x1
Circuit protection: A, C, D
Light spot size (distance): Ø 50 mm (350 mm)
PNP signal voltage HIGH/LOW: ultraviolet - (< 2.9 V) / approx. 0 V
Detection range: 10mm... 250 mm
Housing length: 36.8 mm
Degree of protection: IP 67
69K
Supply voltage: 10 V DC ... 30
Storage ambient temperature: -25 ... 70 °C
Switching output: PNP
Optical axis: Axial
Housing Material: ABS, Plastic
Adjustment: Potentiometer, 270°
Light source: DIRECTED
Light type: Infrared light
Frequency of change: 400
Protection class: third
Wavelength: 950nm
Switching mode: Light switching
UL File No.: NRKH. E189383 and NRKH7. Q189383
Response time: ? 1.25 ms
Sensor/detection principle: Photoelectric, energetic proximity sensor
Housing design (light emission): Cylindrical, straight
Power consumption: 30
Output current Image: 100
Dispersion angle: What. 4.5 °
Connection type: M12 connector, 3-pole

Conditie: nieuw in de verpakking
